|Thickness||Inner (SUS304)thickness: 2.5mm;|
External-Jacket(SUS304) thickness: 2.0mm
|Material||Stainless steel 304|
|Cooling way||Dimple jacket plate|
|Cleaning way||CIP in situ cleaning, with rotary spray cleaning ball|
Product advantages :
1. 304 stainless steel plate as a whole, and our stainless steel plate manufacturer is the best in China
2. The cooling efficiency of Maitreya plate jacket is greatly improved.
3. Two stage cooling mode.
4. The insulation layer material is high-grade polyurethane with a thickness of 80mm.
5. Polishing accuracy up to Ra0.4μ m.
6. Strict tank pressure test.
7. Energy conservation and pollution emissions.

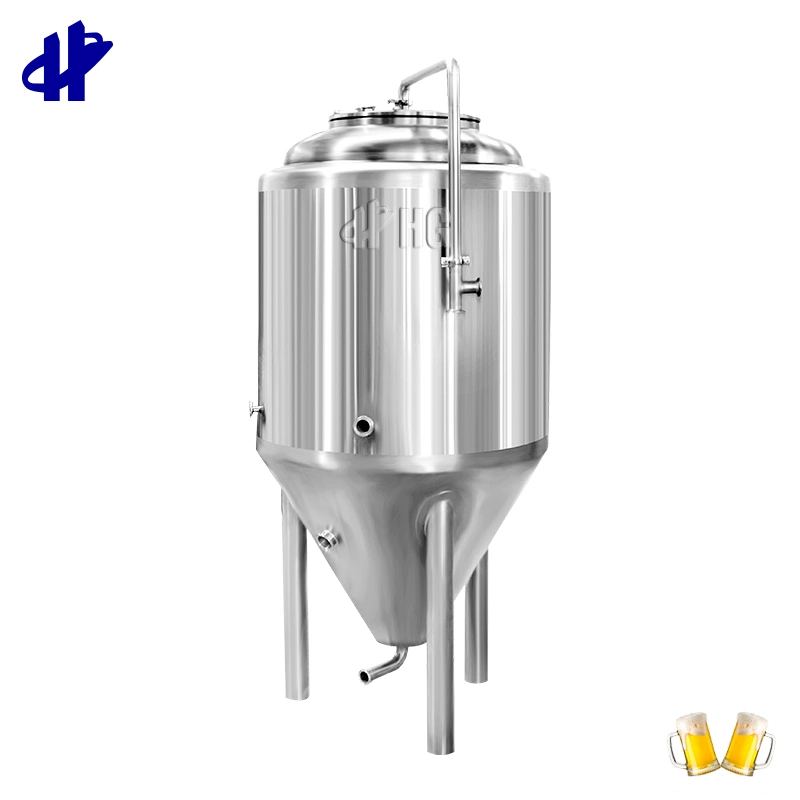

The fermentation tanks use certified stainless steel material. All tanks and jackets inspected and pressure
tested to 3 times operatiing pressure. The dimension of the tanks can be designed according to customer's
requirement. Tank design pressure is 0.4Mpa and testing pressure is 0.3Mpa.
|Item||Production capacity||Volume in US Gallon||Heating area||Tank diameter||Height|
|HG-5BBL||5BBL/day||155 US Gallon||1.9m2||1200mm||2350mm|
|HG-10BBL||10BBL/day||310 US Gallon||2.8m2||1460mm||2700mm|
-Layout:Sent us your building floor plan, or the sketch, or tell us the size (length, width, height), we will offer you an equipment footprint according to your requirement.
-Technical Drawings : We will offer Technical Drawings of each tank based on the equipment layout .
-3D effective sketch: We will 3D effective sketch to make sure ensure you have a more intuitive experience
We guarantee the quality of the electrical elements within 1year and tanks body within 1 years. If the electrical elements go wrong without artificial factors within one year, we will freely provide them or maintain them for you.
After warranty, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support. We can also dispatch our engineer to your brewery to install and adjust the machines for you. He can also train your staff to use the equipment.
1.Q:Does your company have foreign installation experience?
A: Yes, our company has installation experience in USA, Canada, Europe, Australia, Malaysia, Myanmar, South Africa etc.
2.Q: Do you have a professional engineer or after-sales team in our country?
A: Yes, our equipment is sold to 150 countries and areas and we have our local after-sales service personnel in Europe, America and Asia.
3.Q: How long is the delivery time?
A: The delivery time of beer equipment is 30-50 working days, the delivery time of filling machine is 45-50 working days.
4.Q:What payment methods are supported?
A:T/T, L/C, Credit Card, VISA, Apple device, Western Union.
5. Q: How long the warranty will be?
A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries. 1 Year warranty for filling machine.
6. Q:How about the installation and training?
A:We can supply the installation and training. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.
7.Q: Can I be your company's sales agent?
A: Yes, it's our pleasure. We very much welcome you to join us. Please contact us to discuss specific details.
