Industrial Vertical Peanut Butter Colloid Mill

Peanut Butter Colloidal MillColloid millmolino coloidalmoulin colloïdalmulino col

Peanut Butter Colloidal Mill
Colloid mill
molino coloidal

moulin colloïdal

mulino colloidale

molam colloid

Kolloid-Mühle

Working Method:
Colloidal mill works with shearing, grinding, high-speed stirring. Grinding process occurs in relative movement between the two teeth with one revolving in high speed and another keep still. Which makes the material between the teeth receive strong shearing and abrasion in addition to high frequency vibration and high speed swirl. The material will be evenly smashed, dispersed and emulsified

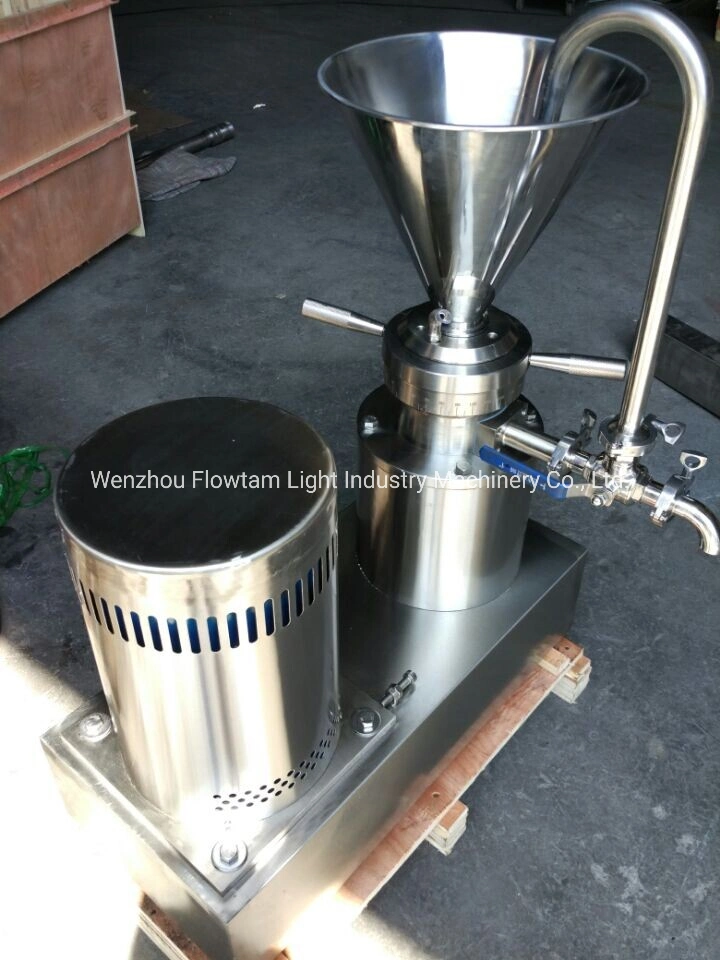

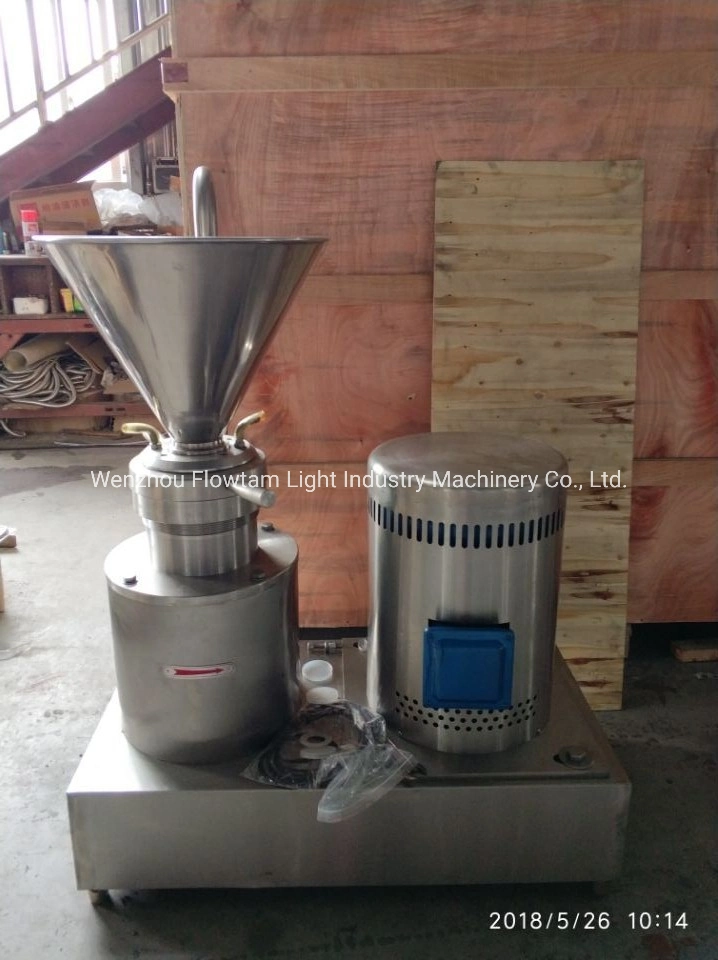

Industrial Vertical Peanut Butter Colloidal Mill

Application of colloidal mill:
The products could be applied in food, beverage, Pharmacy, chemical industry etc.

Teachnical Parameters

Model			JML-50	JML-80	JML-100	JMF-80	JMF-100	JMF-120	JMF-140	JMF-200
Emulsifiedgranularity (um) Single cycle or multi-cycle			5~40	3~40	2~40	3~40	2~40	2~40	2~40	2~40
Adjusting range (mm)			1-0.01	1-0.01	1-0.01	1-0.01	1-0.01	1-0.01	1-0.01	1-0.01
Output (t/h) Variable according to natures of materials			0.01-0.2	0.3-1	0.5-2	0.3-1	0.5-2	0.7-3	1-4	2-7
Motor	Power (Kw)		1.1	3	5.5	4	5.5	7.5	11	15
	Power supply		3Ph, 380V, 50Hz
	Rotation speed (r/min)		2900	2900	2900	2900	2900	2900	2900	2900
Milling slice diameter (mm)			50	80	100	80	100	120	140	200
Diameter of outlet (mm)			15	25	32	25	32	40	40	65
Diameter of inlet (mm)			32	50	50	50	50	65	80	120
Cooling water pipe diameter (mm)			8
Contact material			Stainless steel 304 (316 is optional)
Dimension		L (mm)	420	520	560	640	750	750	820	980
		W (mm)	280	400	420	550	620	620	700	800
		H (mm)	760	900	950	1030	1080	1080	1250	1550
Net Weight (Kg)			42	84	129	210	275	295	325	450
