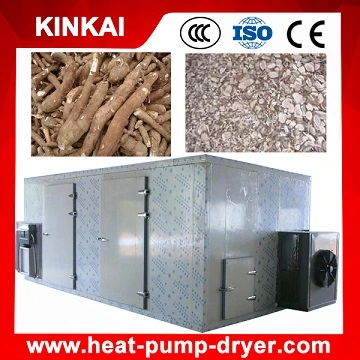

Kinkai factory direct dry tapioca chips tapioca dryer

KINKAI third generation heat pump dryer is a device that transfers heat from a colder area (ambient temperature) to a hotter area (drying chamber) by using mechanical energy, as in a refrigerator, circulating hot-air assures uniform drying and high efficiency. Model:  JK03RD, JK06R

Featured Products

KINKAI third generation heat pump dryer is a device that transfers heat from a colder area (ambient temperature) to a hotter area (drying chamber) by using mechanical energy, as in a refrigerator, circulating hot-air assures uniform drying and high efficiency.

Model:  JK03RD, JK06RD, JK10RD
Power Supply:  220V/1PH/50HZ or 380V/3PH/50HZ
Type: 75% air source + 25% electric power
Max. Temp:  75ºC
Working Temp:  -10~45ºC
Functions:  Heating / Cooling / Dehumidify
Dryer Type:  Batch Type

Features:
1. Adopt close dehumidify + circulating drying type, saving operating cost;
Without waste gas and waste heat pollution, low noise
2. PLC + Touch Screen, operating easily; can setting different drying curve, Suitable for drying different materials.
3. Second waste heat recovery technology (patent)
Adopt air to air heat exchanger dehumidify and recovery waste heat at the same time, the heat efficiency is high and energy is saved.
4. By using the forced ventilation function, there are the adjustable air distribution plates inside the oven. The materials can be dried uniformly.
5. The temperature: hot air heating 10-75°C, max 75°C.
6.  The baking plate dimensions and materials can customize as customer request.
7. During drying, the material does not craze, does not distortions, non-discoloring, never degenerate, non-oxidize, drying completely, with good dehydration, keep nutrient content;
8. Safe and reliable operation, automatic intelligent control, 24-hour continuous drying.

Technical Parameters
ModelUnitJK03RDJK06RDJK10RD
Heating capacityKW12.0026.0035.00
Cooling capacityKW7.5020.0025.00
Power supplyV/PH/HZ220/1/50 or 380/3/50380 / 3 / 50380 / 3 / 50
Power
input
CompressorsKW2.805.309.30
Evaporator Fan motorsKW0.780.781.50
Hot air circulating fan motorsKW2.002.002.00
Dehumidify fan motorKW0.370.370.55
Auxiliary electric heaterKW3.006.009.00
Total Running currentA35.00 or 20.0030.0045.00
Dehumifification amountL/H122540
Max. hot air temperatureºC757575
Working ambient temperatureºC-10 ~45-10 ~45-10 ~45
NoisedB(A)757575
Hot air circulating fan motorsPower input/qty250W/unit250W/unit250W/unit
Wind volume2500m3/H/unit2500m3/H/unit2500m3/H/unit
fan moter quantity6 units8 units8 units
Dimension(L*W*H)mm1650*960*12801730*1220*12802100*1460*1590
WeightNet weightKg210385480
Gross weight240420540


Recommend Dryer+Drying Chamber Sizes
ItemDescriptionProduct CapacityDrying Chamber size
1One unit JK03RD dryer + drying chamber300Kg / batch3300*1900*2200mm
2One unit JK06RD dryer + drying chamber600Kg / batch6000*2800*2200mm
3One unit JK10RD dryer + drying chamber1000Kg / batch6000*3000*2200mm
4Two units JK03RD dryers + drying chamber1200Kg / batch7000*2200*2200mm
5Two units JK06RD dryers + drying chamber1500Kg / batch10000*2800*2200mm
6Two units JK10RD dryers + drying chamber2500Kg / batch10000*3000*2200mm
Warm prompt: We can make any drying chamber sizes as your required.
